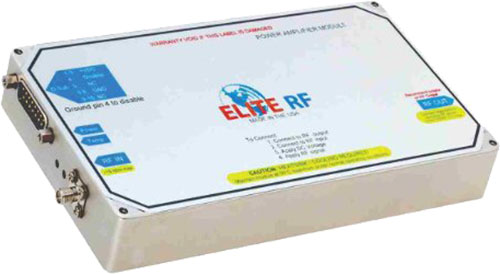

Class AB Linear Module

Elite RF MB Series is a Class AB, high-power RF amplifier providing linear power over the specified bandwidth, ideal for a variety of high-power test setups as well as applications including communications, radar, EW, industrial, scientific, medical and more. The amplifier utilizes LDMOS or GaN technology to achieve excellent gain, efficiency, reliability, and offers flexibility to manage SWaP-C demands for commercial off-the-shelf (COTS). The rugged designed amplifier provides stability and built-in self-protection against reverse polarity and overheating. Housed in a rugged aluminum alloy case, the unit features SMA connectors and must be mounted on a heat sink for cooling.

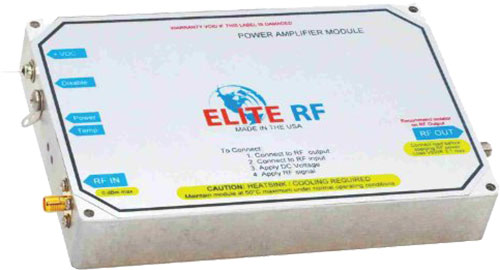

Class AB Pulsed Module

Elite RF MP Series is a Class AB, high-power pulsed RF amplifier providing linear power over the specified bandwidth, ideal for a variety of high-power applications including communications, radar, EW, industrial, scientific, medical and more. The amplifier utilizes LDMOS or GaN technology to achieve excellent gain with a typical duty cycle of 10% and offers flexibility to manage SWaP-C demands for commercial off-the-shelf (COTS). The rugged designed amplifier provides stability and built-in self-protection against reverse polarity and overheating. Housed in a rugged aluminum alloy case, the unit features SMA connectors and must be mounted on a heat sink for cooling.

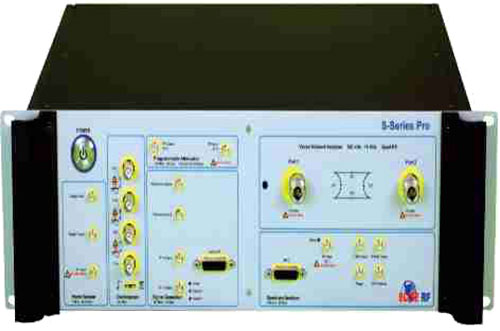

Standard Line S-Series Pro

A compact and cost-effective alternative to bulky and expensive rf test equipment has been the dream of many engineers. Elite RF tasked its engineers to develop a multi-purpose RF test equipment product that would be a workhorse for the RF engineer. The goals were to be as versatile as possible, have a small footprint — yet remain affordable compared to the typical RF test equipment on the market. The S-Series Pro product line is the result of that development. The new & innovative S-Series Pro Multi-Purpose RF Test System. It is a flexible alternative to expensive & bulky RF test equipment and can be used for R&D characterization on the bench, EMC assessment and automated production test in the factory. The RF test equipment built into the S-Series Pro can be used standalone or with other external equipment. Base Model is controllable via a USB port with on screen GUI. Compatible computer required along with included S-Series Pro software.

The S Series Pro with controller features:

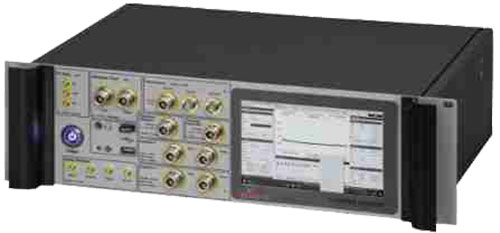

Standard Line S-Series

A compact and cost-effective alternative to bulky and expensive test equipment has been the dream of many engineers. Elite RF tasked its engineers to develop a multi-purpose RF test equipment product that would be a workhorse for the RF engineer. The goals were to be as versatile as possible, have a small footprint – yet remain affordable compared to the typical RF test equipment on the market. The S-Series product line is the result of that development. The new & innovative S-Series Multi-Purpose RF Test System is a flexible alternative to expensive & bulky RF test equipment and can be used for R&D characterization on the bench, EMC assessment and automated production test in the factory. The RF equipment built into the S-Series can be used stand-alone or with other external equipment. The standard line s-series rf test equipment is an all in one, cost-effective piece of equipment that incorporates the following items:

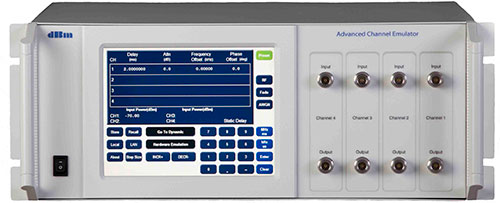

Advanced Channel Emulator – ACE9600

The ACE9600 builds upon the SLE900 by adding Payload impairment capability, synchronization of up to 16 channels, 12 tap multipath fading, and 600 MHz of instantaneous bandwidth. The instrument can be configured with 1 to 4 channels. Link impairments include delay, Doppler, attenuation, phase offset, AWGN, frequency hopping, and multipath fading. Payload impairments include IMUX/OMUX emulation (amplitude and delay distortion), amplifer compression effects (AM/AM and AM/PM), phase noise, and spurious signals. Parameters can be set to fixed values in Static mode, or continuously changed in real time in Dynamic mode without phase discontinuities. Ephemeris data files are downloaded via an ethernet connection and stored internally in solid state memory. These dynamic files can have playback rates from 1 Hz to 1000 Hz, and  can be executed single run, continuously looped, or single stepped.

Remote control can be accomplished by making calls from your test software, or by using the ACEClient application program provided with the instrument. This application provides control of all ACE functions, as well as manipulation of the dynamic data files. Built into the client are wizards that can generate profiles to emulate band limiting filters such as IMUX/MUX devices, and profiles for amplifier compression.

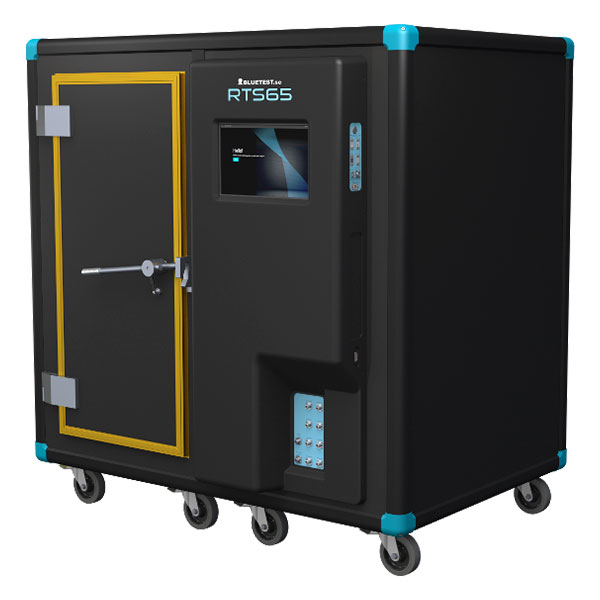

The RTS65 reverberation chamber is designed to optimize the time you spend on OTA measurements. Our development focus has been on increasing the productivity in your lab. We want your focus to be on the results, not the test equipment. We have developed a generation of RTS chambers that is an integrated system which will give every engineer the user experience they deserve. The latest addition to the RTS65 includes up to 16 sub-12 GHz measurement ports and innovative solutions supporting 5G measurements including directive and isotropic measurements in the 28 and 39 GHz (FR2) mmWave bands.
